 Tooling Systems      Family: PHAR/L External Machining Holders for PADR/L Adapters       Designation: PHAR 25

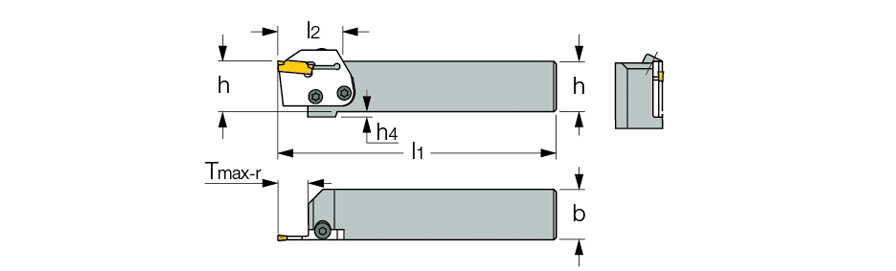

 Right-hand shown

Tmax-r h b l1 l2 h4 R/L
  16.30   25.0   25.0   140.00   35.5   5.0   R

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800716 Not Available
3D Required		 Not Available
3D Required


4300412  4300412  SR 76-1368

7000043  7000043  HW 4.0

7003565  7003565  SR M5-04451  Details

7000269  7000269  T-20/5
