 Tooling Systems      Family: C#-SLFNR/L-TANG Toolholders with CAMFIX Exchangeable Tapered Shanks for LNMX Tangentially Clamped Inserts, for Heavy Face Turning       Designation: C5 SLFNR-35060-15 TANG

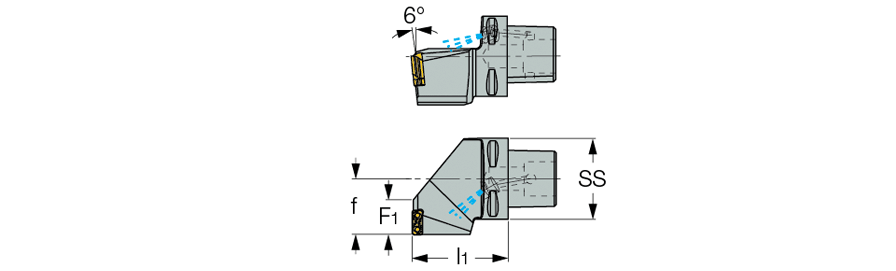

 Right-hand shown

Ext. tangential face 93°approa   ISO 26623-1 (CAMFIX)   COOLANT
SS f F1 l1 R/L
  50   35.0   22.0   60.00   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3696364


5520219  5520219  TLN 15L-HT

7002843  7002843  SR RS4  Details

7000428  7000428  T-6/5

7000000  7000000  SR 34-535-SN  Details

7002096  7002096  BLD T15/S7

7003805  7003805  SW6-T-SH

7000898  7000898  EZ 104


ap max for longitudinal turning: LNMX 11: 2.8 mm, LNMX 15: 3.8 mm
