 Portaútiles      Familia: C#-ASHR/L Holders with CAMFIX (ISO 26623-1 Standard) Exchangeable Shanks for External Square-Shank Tools       Denominación: C6 ASHR 25 1

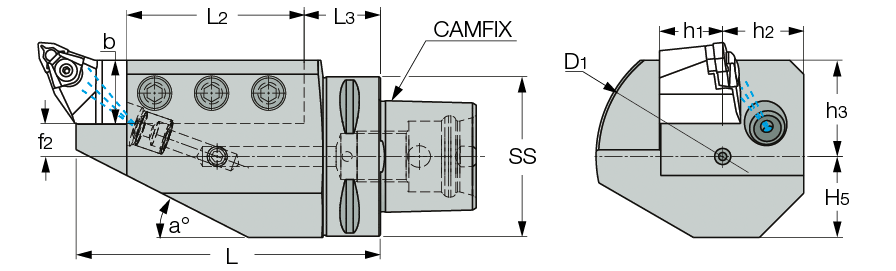

 Left-hand shown .
 Right-hand shown
COOLANT
SS L L2 L3 f2 h1 b R/L h2 h3 H5 D1
  63   120.00   70.00   30.00   13.00   25.0   25.0   R   32.0   38.0   32.00   100.0

  Código Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4509468


4505592  4505592  SR M12X30 DIN915 45H  Details

7000049  7000049  HW 6.0
(Optional, should be ordered separately)

7003855  7003855  SATZ-M12X1-M6

7005914  7005914  WRENCH NOZZLE HP M12
(Optional, should be ordered separately)
