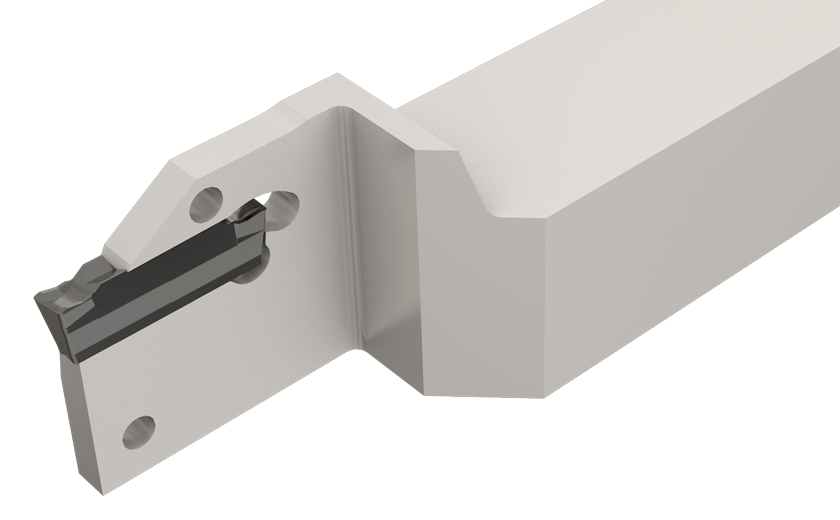

 Turn-Groove      Family: DGTR/L Integral Shank Parting and Grooving Tools       Designation: DGTL 2525-5
 Right-hand shown
 Left-hand shown
Ext. Grooving   Parting

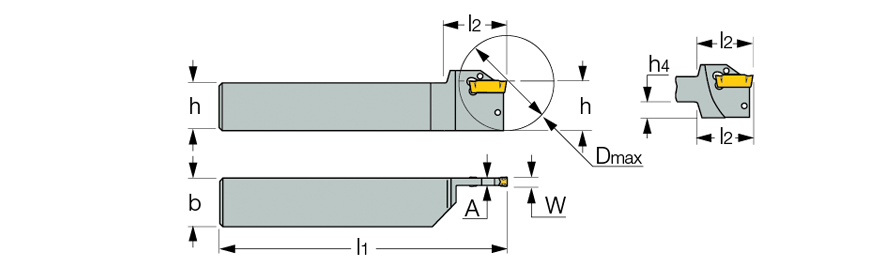

W min W max h b A l1 l2 h4 D max R/L
  4.80   5.00   25.0   25.0   4.00   150.00   33.0   -   76.0   L

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2301331 Not Available
3D Required


7001923  7001923  EDG 33A
(Optional, should be ordered separately)


Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user.
DG..1.0 insert can be mounted into pocket sizes 2 and 3. In that case the pocket width has to be modified-click on "More Info"
