 Turn-Groove      Family: GDMY (full radius) Utility Double-Ended Full Radius Inserts for Grooving and Profiling       Designation: GDMY 840


Ext. Grooving   Ext. Profiling   Int. Grooving   Int. Profiling   Face Grooving   Face Grving Along Shaft   Face Grooving & Turning

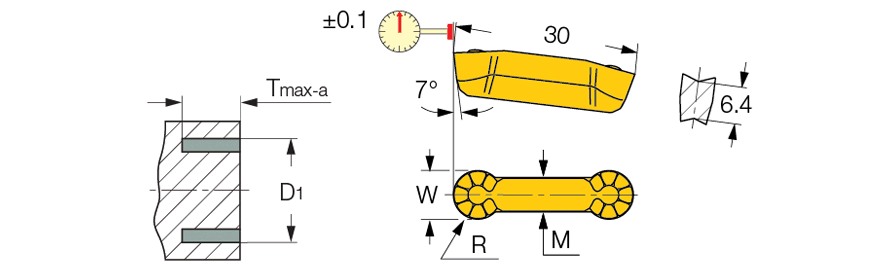

W±0.05 R±0.05 M D1 min Tmax-r Tmax-a ap(min) ap(max) ft(min) ft(max) fg(min) fg(max)
  8.00   4.00   5.6   50.0   25.00   25.00   0.00   4.00   0.32   0.67   0.18   0.34

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6401882 IC20 Alternative

  6401883 IC635 Alternative

  6404105 IC808 Alternative

  6404275 IC8250

  6404282 IC5010 Alternative

  6405098 IC830 Alternative

  6405336 IC806

  6494333 IC428 Alternative

  6495995 IC354 Alternative


click on for individual picture
Can cut arcs to 250°
Dmin for internal machining = 65 mm
