 Tooling Systems      Family: SLFNR/L-TANG Toolholders for LNMX Tangentially Clamped Inserts       Designation: SLFNR 3232P-15 TANG

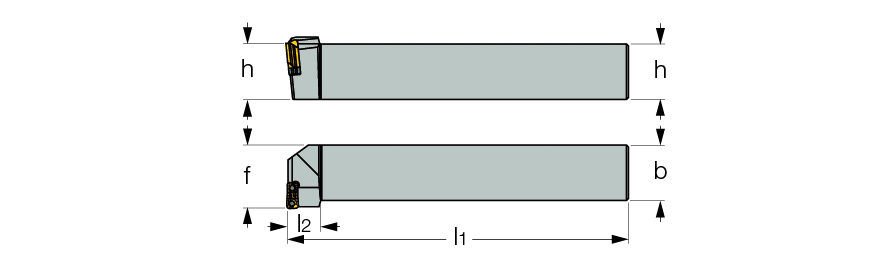

 Right-hand shown
 Left-hand shown
Ext. tangential face 93°approa
h b l1 l2 f Ga° Gr° R/L
  32.0   32.0   170.00   20.0   37.0   -6   -6   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602428 Not Available
3D Required		 Not Available
3D Required


5520219  5520219  TLN 15L-HT   Right-hand seat for left-hand holder, left-hand seat for right-hand holder.

7002843  7002843  SR RS4  Details

7000428  7000428  T-6/5

7000000  7000000  SR 34-535-SN  Details

7002096  7002096  BLD T15/S7

7003805  7003805  SW6-T-SH


ap max for longitudinal turning is 5.8 mm
Right-hand insert and seat for left-hand holder, Left-hand insert and seat for right-hand holder
