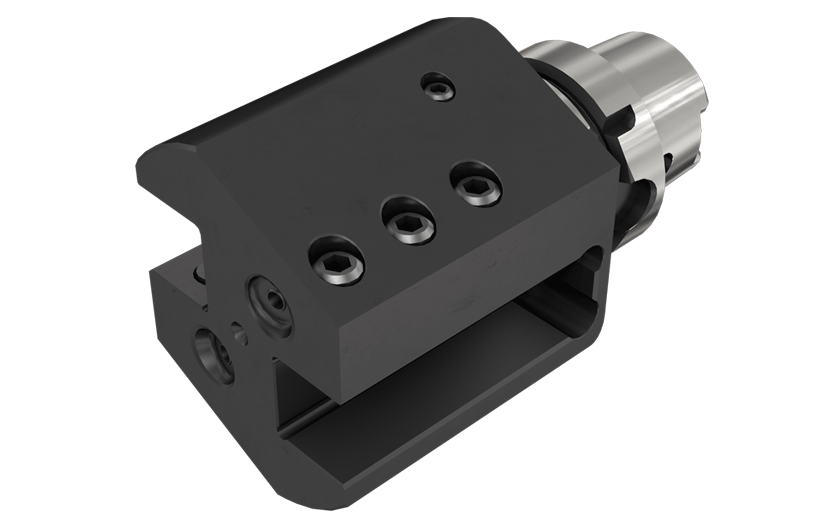

 Turn-Groove      Family: HSK A63WH-ASHR/L-2 Twin Square Shank Tool Adapters with HSK Exchangeable Shanks for Turn-Mill Machines       Designation: HSK A63WH-ASHL-25-2

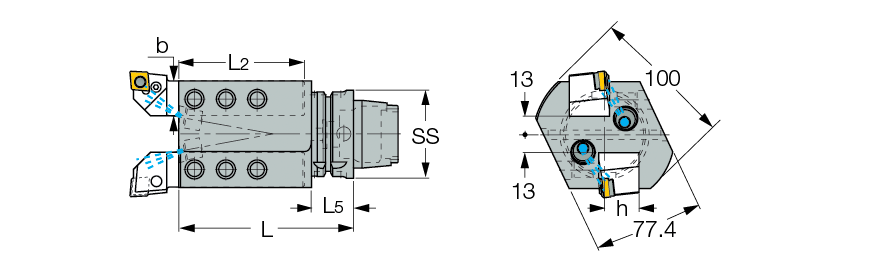

 Left-hand shown

COOLANT
SS L l1 L2 h b R/L
  63   125.00   160.00   95.00   25.0   25.0   L

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4505027 Not Available
3D Required


4505592  4505592  SR M12X30 DIN915 45H  Details

7003855  7003855  SATZ-M12X1-M6


A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, click on "More Info".
