 Tooling Systems      Family: ECR-B-X 4-5 Flute, 45° Helix Solid Carbide Roughing Endmills with 4xD Relieved Necks       Designation: ECR-B4X 10-15/40W10-80 90


Shouldering   Slotting   Ramp down   Helical interpolation   Counter boring   Plunging & recessing

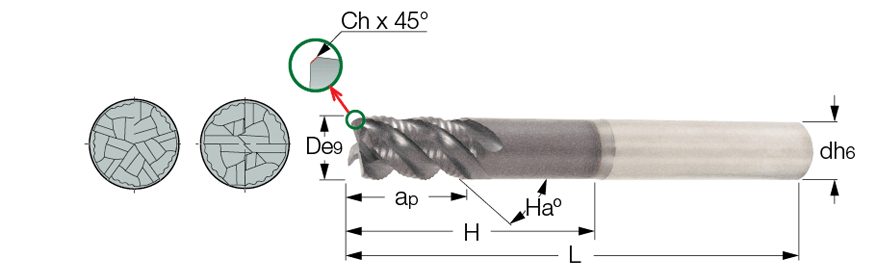

D d ap H L Flute Ha° Rd° ShankC-Cylindrical, W-Weldon Ch fz(min) fz(max)
  10.00   10.00   15.00   40.00   80.00   4   45.0   5.0   W   0.30   0.03   0.09

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5621525 IC900   Not Available
3D Required
  This tool can plunge and recess.
