 Tooling Systems      Family: SCDT Pre-Thread Solid Carbide Drills with Coolant Holes       Designation: SCDT 068-021-100-M8


Chamfering   Drilling   COOLANT

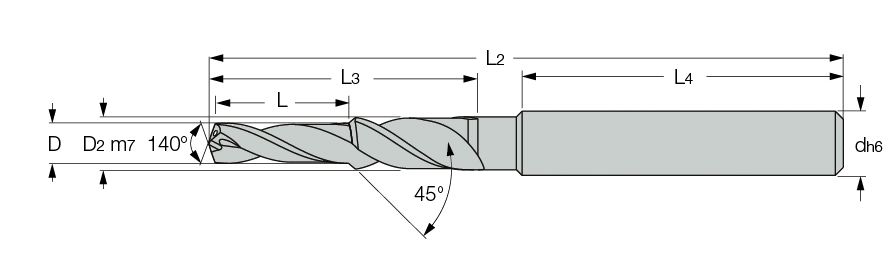

ThUsed for standard thread size. D D2 L2 L L3 d L4
  M8   6.80   9.00   89.0   21.0   47.0   10.00   40.0

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5531414 IC908   Not Available
3D Required
