 Threading      Family: BT-SRK Thermal Chuck Collets with BT MAS-403 Tapered Shanks for Carbide Tools       Designation: BT40 SRK 12X85


RUNOUT (INT) 0.005MM (.0002  TAPER  HARDNESS 50-52  SURFACE FINISH N5
SHRINKIN  COOLANT  G2.5/25000 RPM

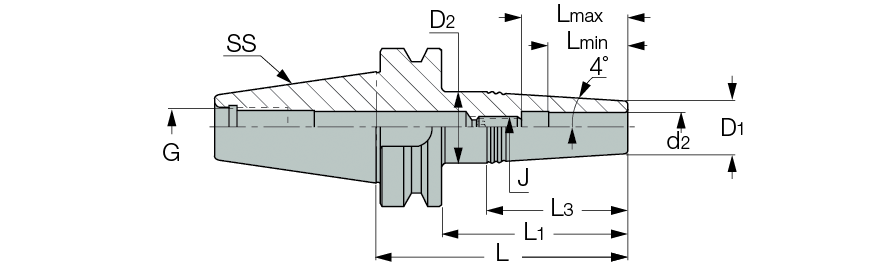

SS d2 D1 D2 L L1 L3 L min L max J KeyHex key size for the rear stopper screw G Kg
  40   12.00   20.0   28.00   112.00   85.0   56.60   32.0   42.0   M10   5.00   M16   1.20

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4504588 Not Available
3D Required


7000669  7000669  SR M10X18DIN913  Details


Balanced to G2.5/25,000 RPM.
For shrink units information, Click on "More Info".
To be used for carbide tools only
Preset screw without coolant hole.
