 ISO-Turning      Family: CCLNR Clamp Lock Toolholders for Ceramic 80° Rhombic Negative Inserts       Designation: CCLNR 12-4CEA

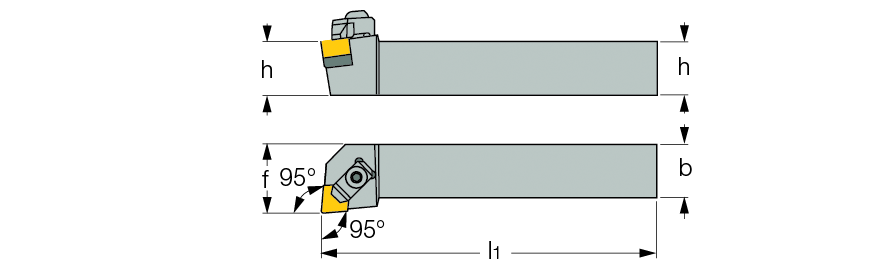

 Right-hand shown

Ext. 80° diamond 95° approach
h b l1 f Ga° Gr° R/L
  .750   .750   4.500   1.00   -4   -6   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3601873 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required


5504998  5504998  S 48

7002263  7002263  SR M5X0.8X10  Details

7000043  7000043  HW 4.0

7002264  7002264  SR M6X1X25ISO7380  Details

7002265  7002265  BCL 6 CLAMP
