 ISO-Turning      Family: TSSNR/L-CH 45° Lead Angle Toolholders Using Square Dimpled Ceramic Inserts       Designation: TSSNL 2525M-12CH

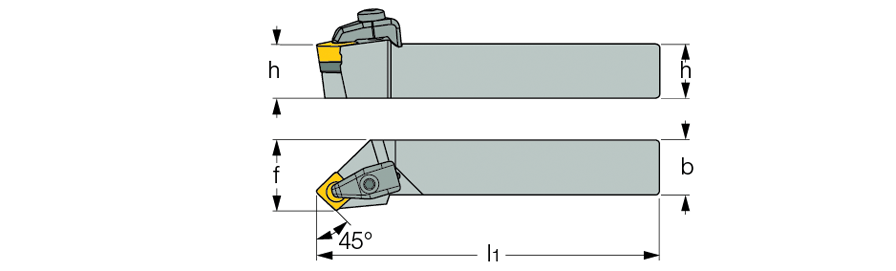

 Right-hand shown
 Left-hand shown
Ext. 90°square face&turn 45°ap
h b l1 f R/L
  25.0   25.0   150.00   32.0   L

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3602380 Not Available
3D Required		 Not Available
3D Required


5504999  5504999  S 40 (SEAT)

7002263  7002263  SR M5X0.8X10  Details

7091863  7091863  CCL 4

7091853  7091853  KSP 5

7091873  7091873  CSC 4  Details

7000043  7000043  HW 4.0
