 ISO-Turning      Family: PICCO R/L 050 (CBN) CBN Tipped Inserts for Internal Turning, Profiling and Chamfering of Hard Steel       Designation: PICCO R 050.5-15B

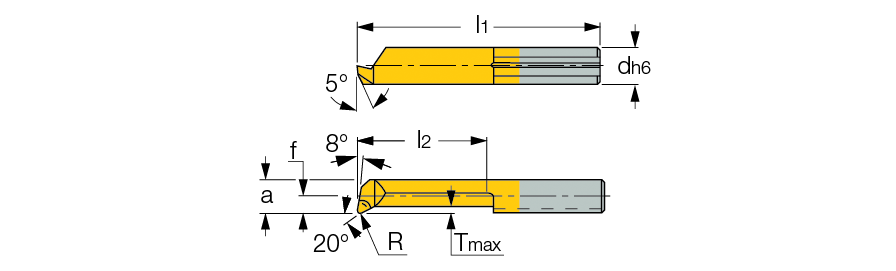

 Right-hand shown
HARD MATERIALS

Int. boring and profiling
d f a l1 l2 Tmax D min R/L R±0.05
  5.00   1.9   4.40   31.50   15.0   0.50   5.00   R   0.20

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  6404191 IB55   Not Available
3D Required

It is not recommended to use coolant when machining with CBN tipped tools
Available on request only
