 Tooling Systems      Family: EC-H4L-CFR (relieved neck) 4 Flute Endmills with 3xD Relieved Necks, with Assorted Radii, Different Helix and Variable Pitch for Chatter Dampening       Designation: EC-H4L 06-12/20C6CFR.2-57


Shouldering   Slotting   Ramp down   Helical interpolation

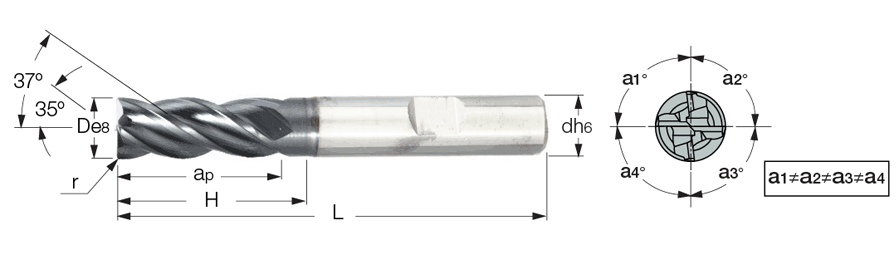

D d ap H L Flute r Rd° ShankC-Cylindrical, W-Weldon fz(min) fz(max)
  6.00   6.00   12.00   20.00   57.00   4   0.20   5.0   C   0.03   0.06

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5623000 IC900   Not Available
2D Required		 Not Available
3D Required
