 Tooling Systems      Family: S M Shanks for Tools with FLEXFIT Threaded Connection       Designation: S M06-L60 C10


RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT

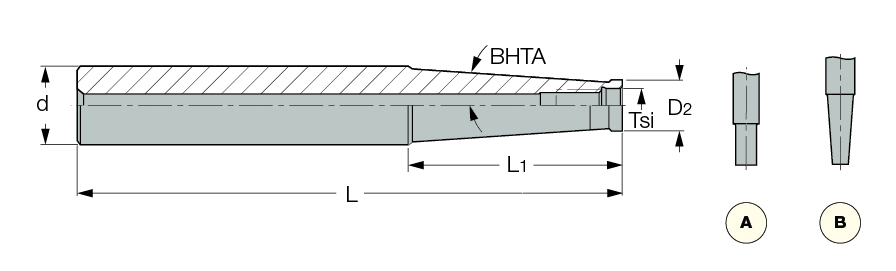

L L1 d Shank D2 a° Tsi Type Kg
  60.00   20.0   10.00   C   9.70   0   M06   A   0.03

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3110722 Not Available
2D Required		 Not Available
3D Required
