 Milling      Family: MM EC-8/MM EC-10 8, 10 Flute Interchangeable Solid Carbide Endmill Heads, 30° and 45° Helix, Various Corner Radii       Designation: MM EC160B12R2.0-8T10


Shouldering   Slotting   Ramp down

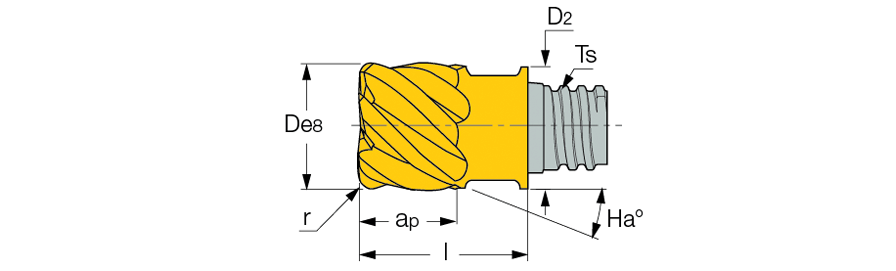

D Flute ap r Ts D2 l Ha° Rd° fz(min) fz(max)
  16.00   8   12.00   2.00   T10   15.30   20.50   45.0   5.0   0.05   0.13

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5621938 IC908   Not Available
3D Required


7002853  7002853  MM KEY 13X8
(Optional, should be ordered separately)


For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
