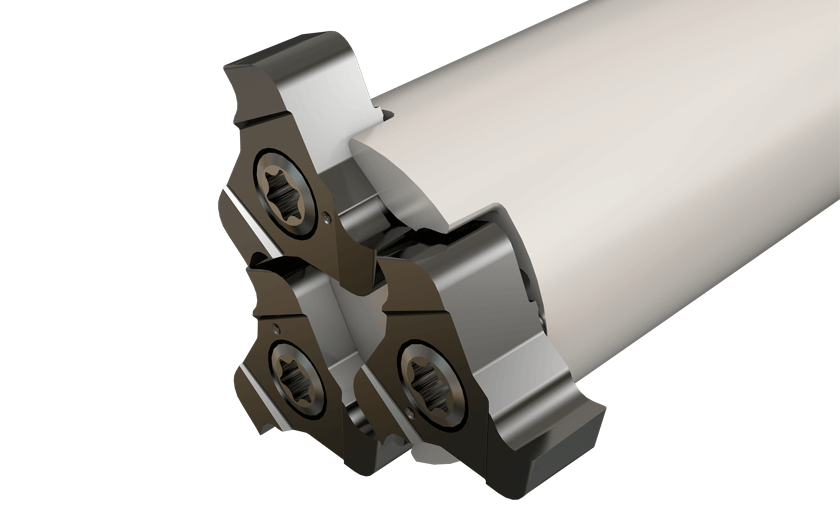

 Milling      Family: TRIB Grooving Shell Mills with Triple-Edged Precision Ground Inserts       Designation: TRIB 32-25W-3Z
 .

Bottom Shouldering   Internal groove milling   Shouldering   Side slotting   COOLANT
D D2 W minRefer to insert data W maxRefer to insert data Z L1 L d Shank Kg
  32.20   21.70   1.20   4.00   3   52.3   110.00   25.00   W   0.35

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2301677
  Minimum bore diameter=33 mm.


4397785  4397785  SR 16-236 08223

7002096  7002096  BLD T15/S7

7002097  7002097  SW6-T


W, Tmax, f, Refer to insert data
For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B
For adaptation click on "More Info".
