 Milling      Family: MM HR Interchangeable 2 Flute Solid Carbide, Concave Radius Milling Heads       Designation: MM HR1.6/063-6.8-2T06
 Economical solution

Corner rounding

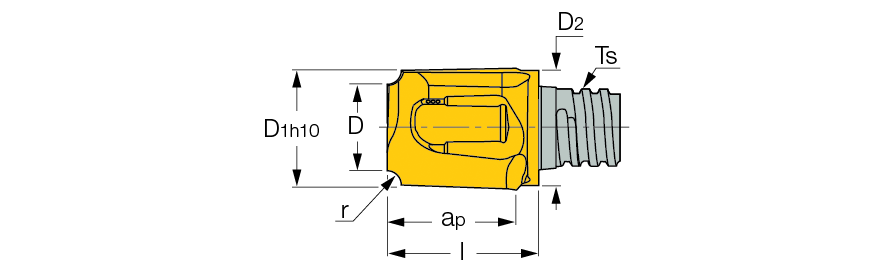

D1 r Z D ap Ts D2 l TmSpecially tailored radius range upon request.
  10.0   1.60   2   6.80   9.50   T06   9.60   12.50   r0.5-3.0

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5604023 IC908


7002809  7002809  MM KEY 8X5
(Optional, should be ordered separately)


For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
