 Turn-Groove      Family: PICCO-080 Inserts for Internal Back Turning       Designation: PICCO L 080.0003-15

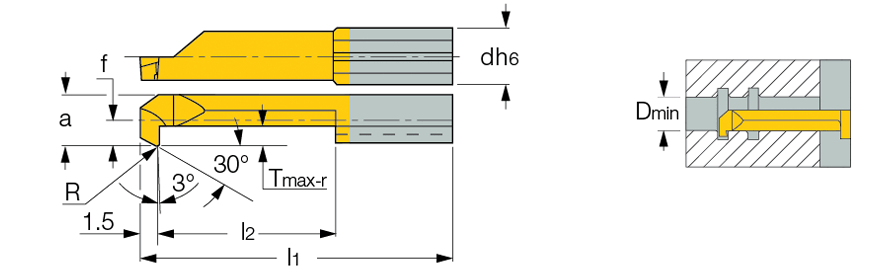

 Right-hand shown

Int. back boring and profiling
d f a W l1 l2 R±0.05 Tmax-r D min R/L
  4.00   0.6   2.60   1.50   29.00   14.0   0.10   0.50   3.00   L

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  6403650 IC228   Not Available
3D Required
