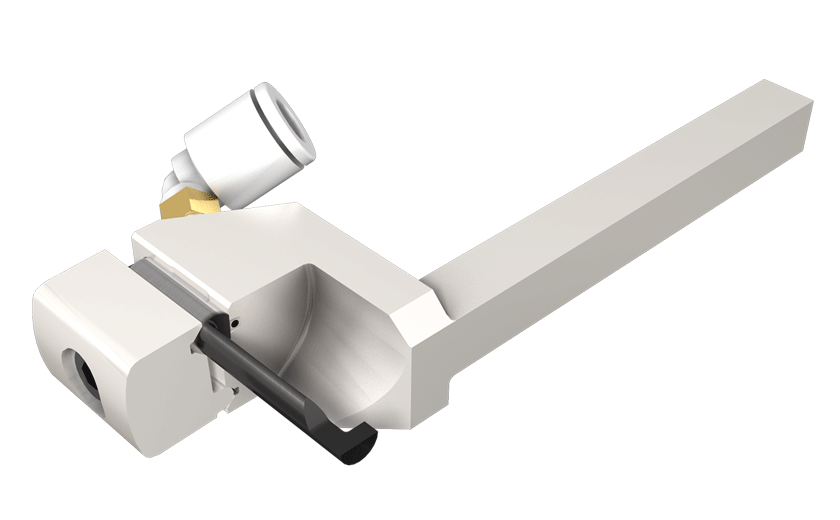

 Multi Function Tools      Family: GHPCOR/L Perpendicular Square-Shank Tools for Use on the Cross Slide Units of Swiss-Type and Automatic Machines       Designation: GHPCOR 12-16-4-6
 Right-hand shown



COOLANT

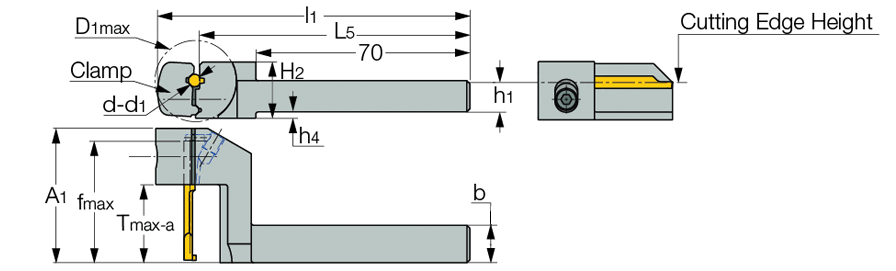

h b l1 L5 h4 H2 A1 D1 max Tmax-a fmax d d1
  12.0   12.0   102.00   88.00   -   18.0   34.00   26.0   16.00   30.0   4.00   6.00

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2801662 Not Available
3D Required		 Not Available
3D Required


2801444  2801444  HED 12

7002122  7002122  SR M4X14DIN912 12.9  Details

7000039  7000039  HW 3.0

7005487  7005487  KQ2L06-M5


PICCOCUT insert should not exceed A1 length.
Left-hand holders are available upon request.
Coolant tube adapter: KQ2L06-M5 (for 6 mm coolant tube)
