 Hole Making      Family: DSD-E3 Deep Single Tube Drills with External 2 and 4 Start Thread and 3 Brazed Tips       Designation: DSD-E3 21.81-24.10 NOM 2
 NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.

DEEPDRILL   Drilling   COOLANT

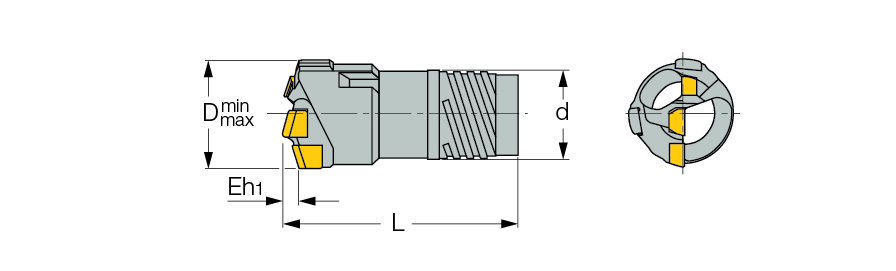

D min D max L d Eh1 ThreadsNo. of thread starts TsTube designation
  21.81   24.10   56.00   18.00   3.2   4   TS-I5

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4880266 Not Available
2D Required		 Not Available
3D Required		 Not Available
3D Required

The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P,K, M, N materials
For quotation form and user guide click on "More Info"
