 Tooling Systems      Family: MTECQ ISO Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal ISO Profile Threading       Designation: MTECQ 1616F43 1.5ISO


Internal thread milling   COOLANT

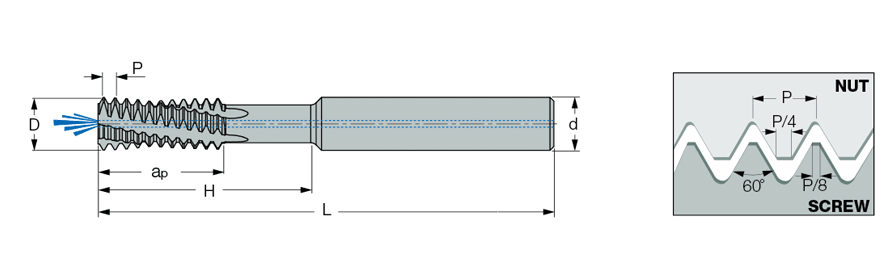

Pitch Thread d D Flute ap H L ShankC-Cylindrical
  1.50   >=19   16.00   16.00   6   25.50   43.50   105.00   C

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5606832 IC908   Not Available
2D Required		 Not Available
3D Required
