 Turn-Groove      Family: GFR/L-J Single-Ended Parting Insert, for Soft Materials, Parting of Tubes, Small Diameters and Thin-Walled Parts       Designation: GFL 1.6J - 8D


Parting

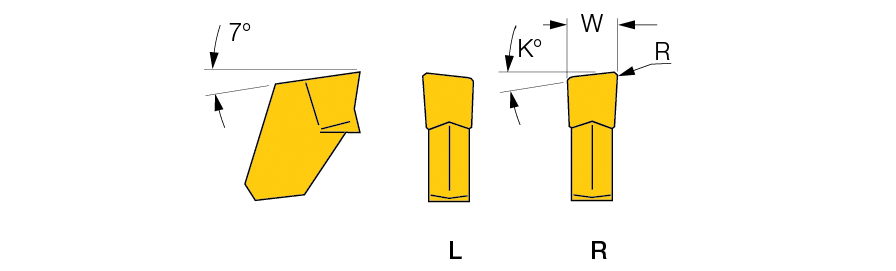

W±0.10 R fa° fg(min) fg(max)
  1.60   0.16   8.0   0.03   0.07

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6096461 IC328 Alternative Not Available
3D Required
