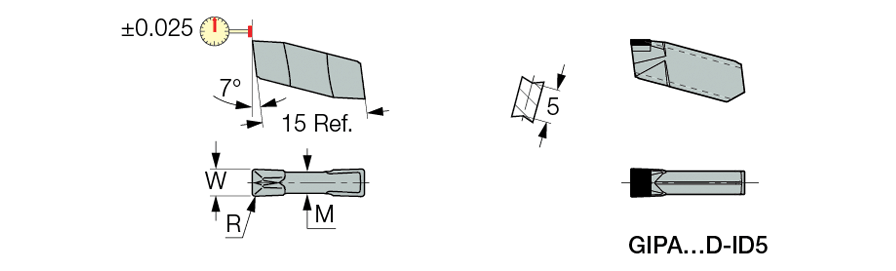

 Turn-Groove      Family: GIPA (W=3-6) Double-Ended Precision Ground Inserts with a Polished Top Rake, for Machining Aluminum       Designation: GIPA 5.00-0.40


Face Grving Along Shaft   Ext. Grooving   Ext. Grooving & Turning   Int. Grooving   Int. Groov & Turn
W±0.02 R±0.03 M ap(min) ap(max) ft(min) ft(max) fg(min) fg(max)
  5.00   0.40   4.0   0.50   3.00   0.16   0.34   0.11   0.23

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6402600 IC20


click on for individual picture
Dmin for internal machining = 70 mm
