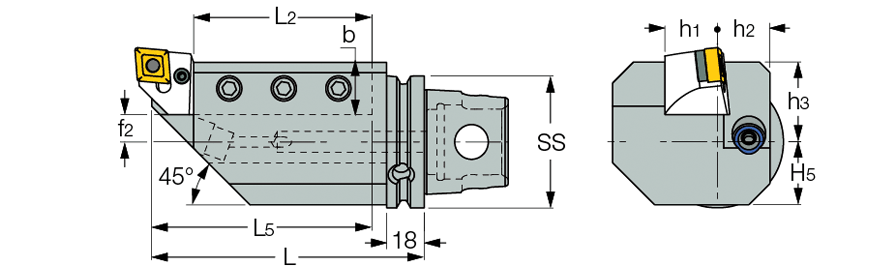

 Turn-Groove      Family: IM63 XMZ-ASHR/L-1 Square Shank Tool Adapters with ISO 26622-1 XMZ Tapered Shank for Mazak Integrex Machines       Designation: IM63 XMZ ASHR 20-1
 Left-hand shown

HARDNESS 45  SURFACE FINISH N5  COOLANT
SS b h1 h2 f2 h3 H5 L L5 L2 R/L
  63   20.0   20.0   25.0   10.00   30.0   30.00   100.00   75.00   55.00   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4510061 Not Available
3D Required		 Not Available
3D Required

For shank standard details, click on "More Info"
