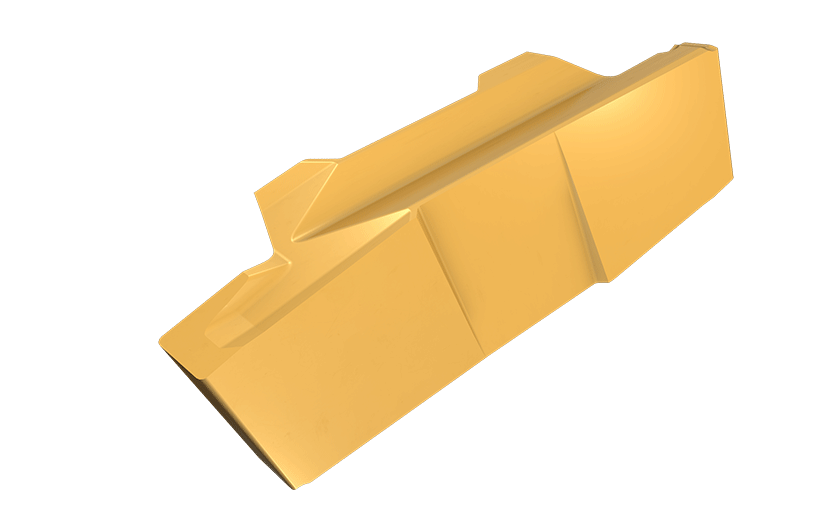

 Turn-Groove      Family: GIP-RX/LX Precision Double-Ended Inserts for External Grooving Next to a Shoulder       Designation: GIP 1.57-0.15 LX


Ext. Grooving

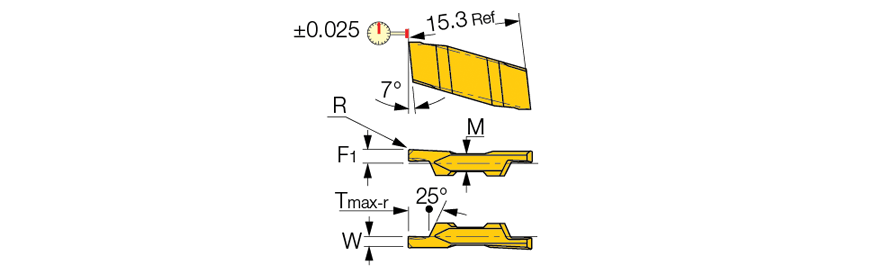

W±0.02 R±0.03 Tmax-r M F1 fg(min) fg(max)
  1.57   0.15   2.70   2.4   1.7   0.04   0.06

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  6405049 IC830
