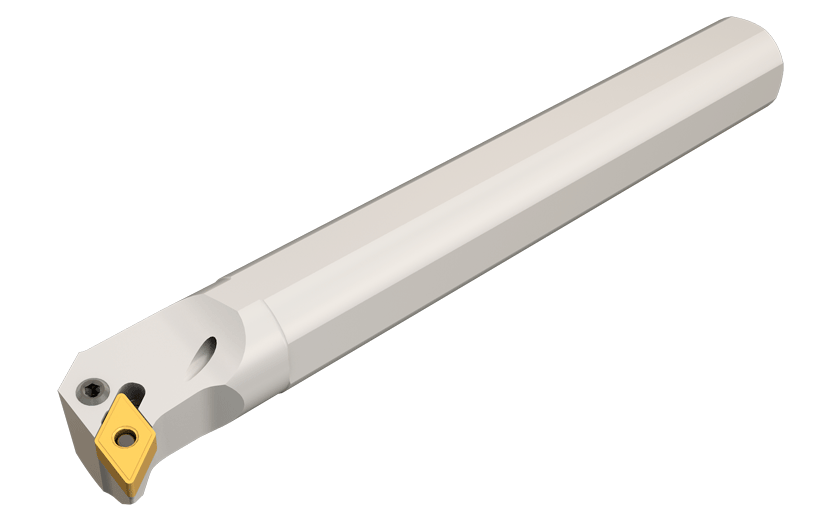

 ISO-Turning      Family: A/S-PDUNR/L Lever Lock Boring Bars for 55° Negative Rhombic Inserts       Designation: S32T PDUNR-15
 Right-hand shown

Int. 55° diamond 93° approach

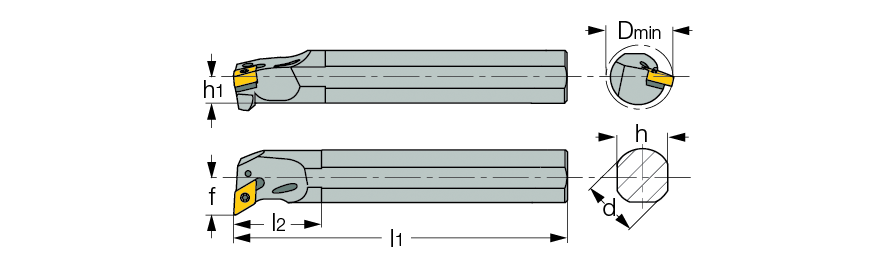

d l1 l2 h h1 f Ga° Gr° D min Coolant R/L
  32.00   300.00   51.0   29.0   14.5   22.0   -6   -13   40.00   -   R

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3601107


7000039  7000039  HW 3.0

7000082  7000082  LR 4D

5520066  5520066  TDN 422   For DNMG 1504.. inserts, use TDN 432 seat

5560065  5560065  TDN 432
(Optional, should be ordered separately)		   Use for DNMG 1504.. inserts

7000168  7000168  SP 4

7000199  7000199  SR 117-2010  Details

7000099  7000099  PN 3-4
