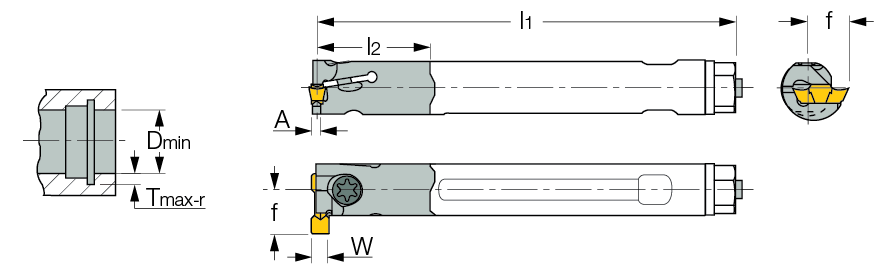

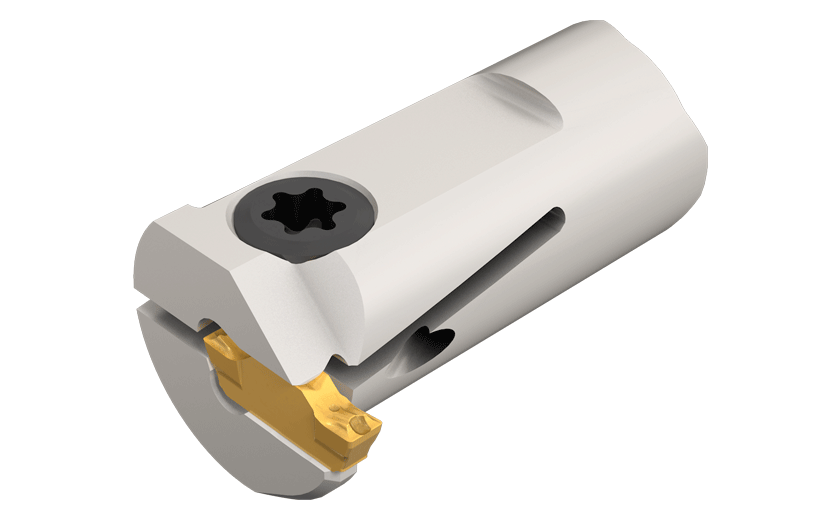

 Turn-Groove      Family: E-GEHIR / E-GHIR Interchangeable Heads for Internal Grooving and Turning       Designation: E16 GHIR 25-3
 Right-hand shown

Int. Groov & Turn   Int. Grooving   Int. grooving (side limit)   Int. Profiling   Threading (Int.)   COOLANT
W min W max D min Tmax-r l1 l2 f A
  2.40   3.00   25.00   4.00   209.00   28.7   12.8   2.00

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2801337 Not Available
3D Required		 Not Available
3D Required


7003565  7003565  SR M5-04451  Details

7003159  7003159  SR 10400197-3 NUT
(Optional, should be ordered separately)

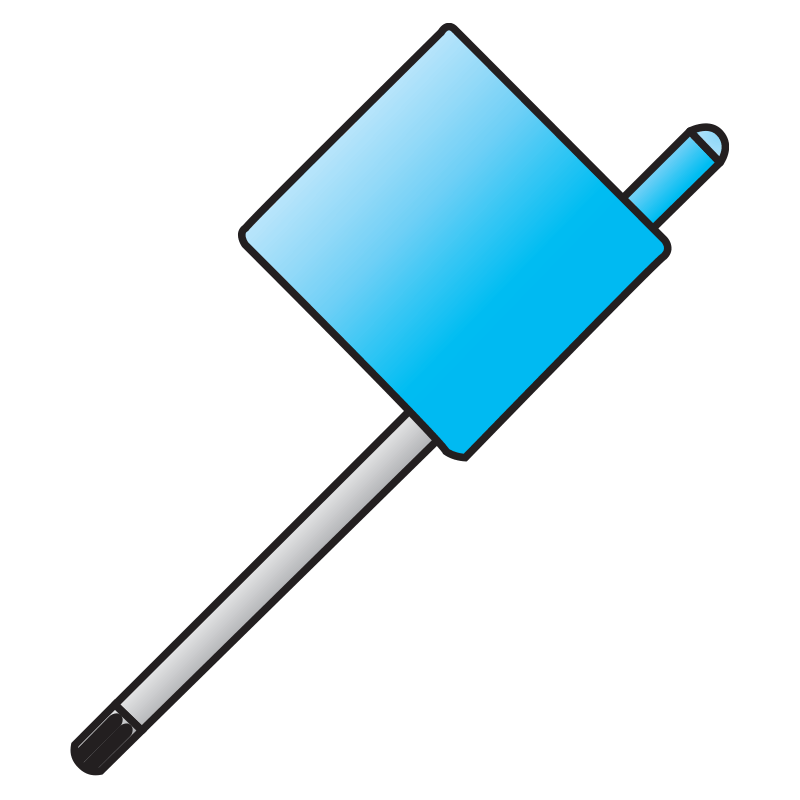

7000269  7000269  T-20/5

4304874  4304874  SR 10400197-2 SCREW
(Optional, should be ordered separately)		  Details


Left-hand heads on request
The shank assembly is the same for right- and left-hand heads
