 Tooling Systems      Family: FRW Rough Profiling Face Mills with Serrated or Regular Round Inserts       Designation: FRW D047A063-05-22.22-16


Facing   Helical interpolation   Plunging & recessing   Profiling   Ramp down

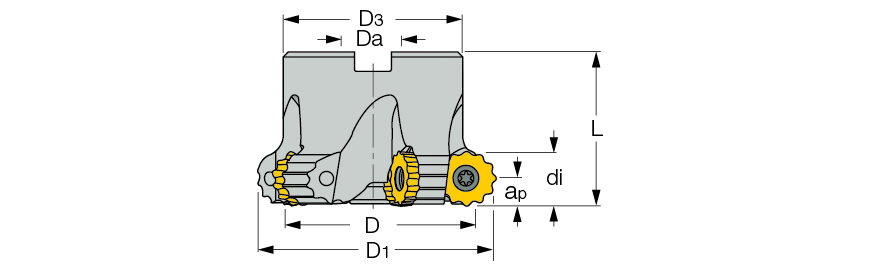

D1 D di Z L Da Rd° ap Coolant ArborFor adaptation, click on More Info. Kg
  63.0   47.00   16.00   5   45.00   22.22   7.0   8.00   Y   A   0.57

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3103999 Not Available
3D Required		 Not Available
3D Required
  Japanese standard


7002000  7002000  SR 14-536/M  Details

7002089  7002089  BLD T20/M7

7002097  7002097  SW6-T
