 Tooling Systems      Family: EB-A4 (economical-short) Economical Type 4 Flute, 30° Helix Ball Nose Short Solid Carbide Endmills       Designation: EB-A4 06-07C06E51


Profiling

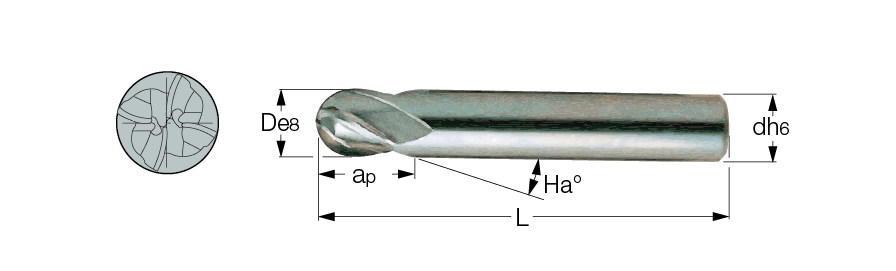

D d ap L Flute Ha° ShankC-Cylindrical
  6.00   6.00   7.00   51.00   4   30.0   C

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5650797 IC08 Alternative Not Available
2D Required		 Not Available
3D Required

  5651083 IC900   Not Available
2D Required		 Not Available
3D Required
