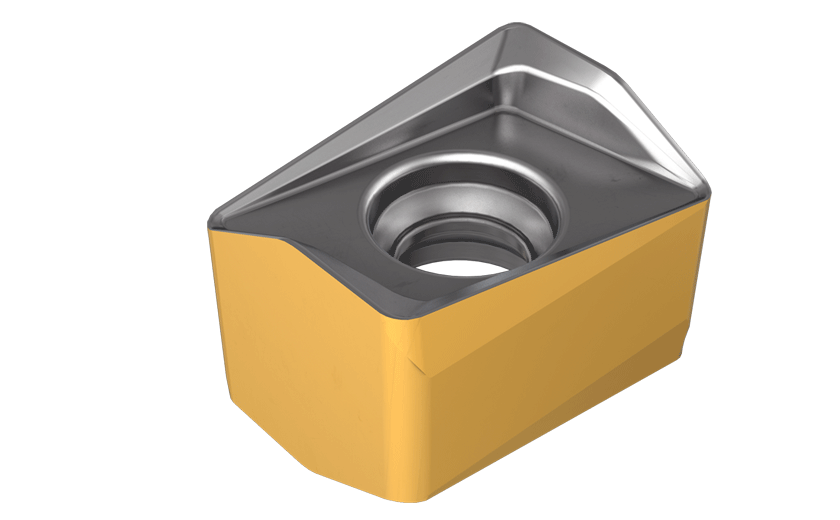

 Milling      Family: H490 ANKX/ANCX-12 Double-Sided Rectangular Inserts with 4 Helical Cutting Edges       Designation: H490 ANCX 120508PDR


Counter boring   Facing   Shouldering   Slotting

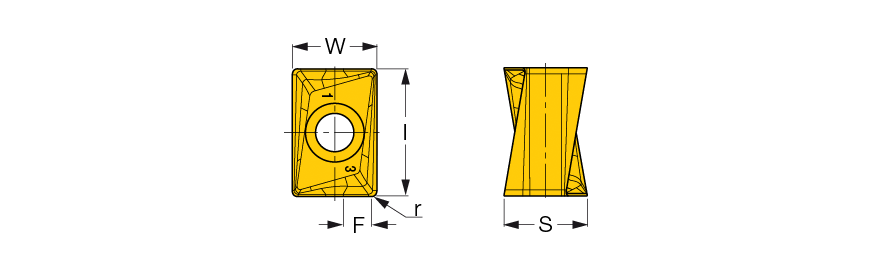

W r S l F fz(min) fz(max)Valid only at up to 2 mm D.O.C. Valid only at up to 2 mm D.O.C.
  10.00   0.80   9.45   13.67   3.50   0.08   0.15

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5606010 IC330   Not Available
3D Required

  5606011 IC830   Not Available
3D Required

  5606012 IC808   Not Available
3D Required

  5606013 IC810   Not Available
3D Required

  5606014 IC5100   Not Available
3D Required

  5606015 DT7150   Not Available
3D Required

  5606468 IC380   Not Available
3D Required


ANKX-utility inserts. ANCX-precision inserts.
