 Milling      Family: T490 ELN-13 90° Endmills Carrying Tangentially Clamped Inserts with 4 Helical, .490" Long Cutting Edges       Designation: T490 ELND1.25-3-W125-13XL


Shouldering   Slotting   Ramp down   Facing   COOLANT

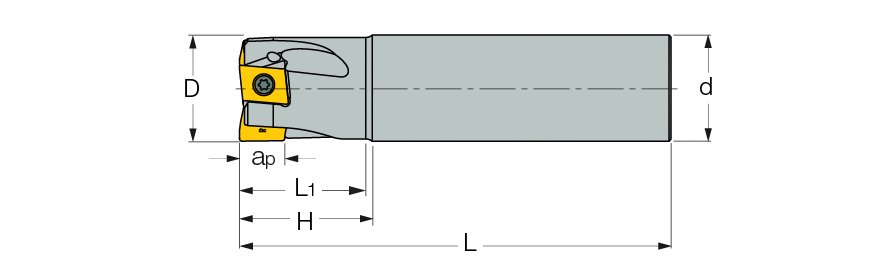

D Z L H L1 ap d ShankC-Cylindrical, W-Weldon Lbs Rd°Only when T490 LNHT 1306 PNTR-RD insert is used
  1.250   3   6.250   3.250   3.13   .490   1.250   W   1.896   2.9

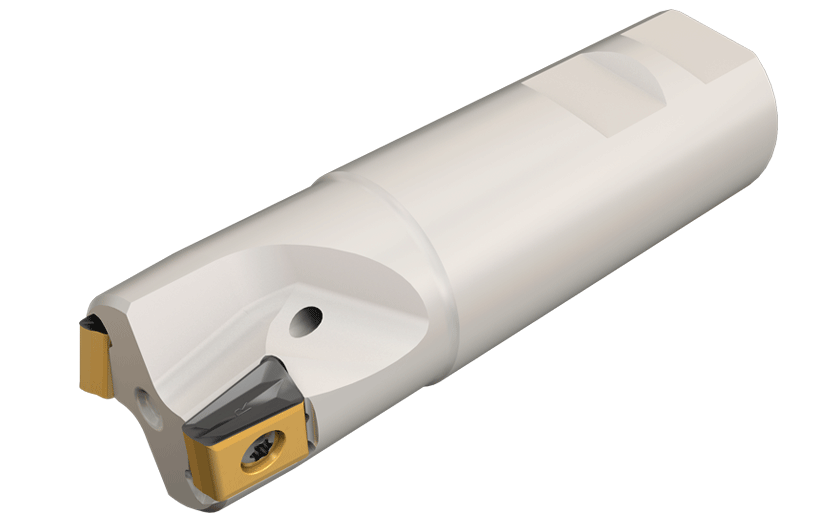

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3105300 Not Available
2D Required


7000000  7000000  SR 34-535-SN  Details

7002096  7002096  BLD T15/S7

7003805  7003805  SW6-T-SH
