 Tooling Systems      Family: C#-EM Weldon Endmill Holders (DIN1835 Form B) with CAMFIX (ISO 26623-1) Exchangeable, Tapered Shanks       Designation: C4 EM16X60


RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT

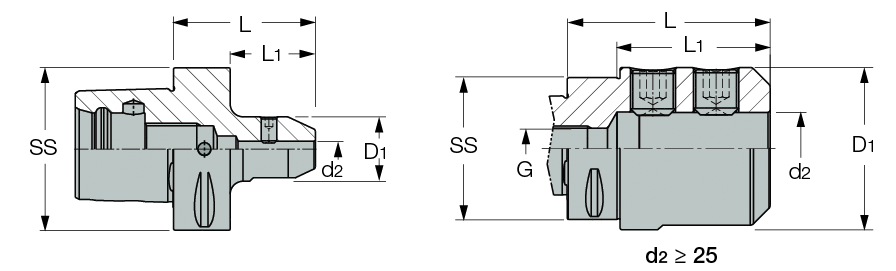

SS d2 D1 L L1 G Kg
  40   16.00   48.0   60.00   40.0   M14   0.67

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4561510 Not Available
3D Required		 Not Available
3D Required
