 Tooling Systems      Family: MTECQ UN Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal UN Profile Threading       Designation: MTECQ 2020E55 12UN


Internal thread milling   COOLANT

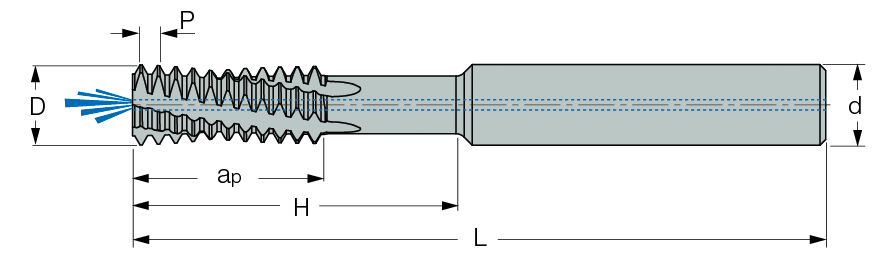

TPI Thread d D Flute ap H L ShankC-Cylindrical
  12.0   >=24   20.00   20.00   5   33.90   55.10   105.00   C

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5606850 IC908   Not Available
2D Required		 Not Available
3D Required
