 Milling      Family: DIN69871-EM (DIN 6359 short) Short Side Clamp Endmill Holders (DIN 6359-HB) with DIN 69871 Form AD/B Taper Shanks for DIN 1835 Form B Weldon Shanks       Designation: DIN69871 40 EM20X 45


RUNOUT (INT) 0.005MM (.0002  TAPER  HARDNESS 58-60  SURFACE FINISH N5
COOLANT

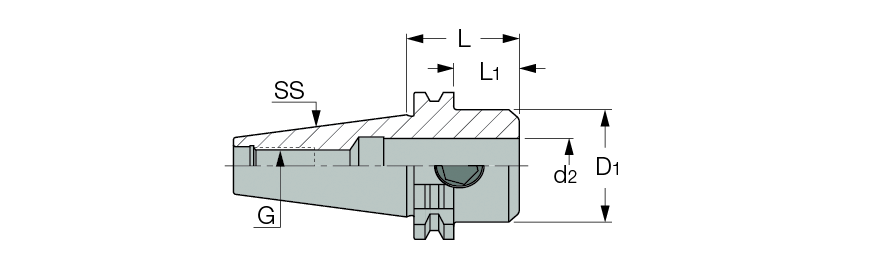

SS d2 D1 L L1 G Kg
  40   20.00   49.0   45.00   25.9   M16   1.00

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  4535028 Not Available
3D Required


4516006  4516006  SR M16X16 DIN1835-B  Details


B is the designation for coolant through flange.
