 Milling      Family: F90 90° Face Mills with TPKN/R Inserts       Designation: F90 D080-27


Facing   Shouldering   Slotting

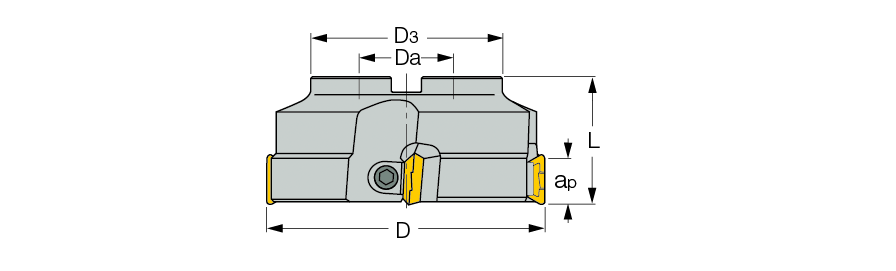

D Z L ap Da ArborFor adaptation click on More Info Kg
  80.00   6   50.00   18.00   27.00   B   1.05

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3100107 Not Available
3D Required


4300078  4300078  LW 35-342 T

4300103  4300103  NTP 43-R

7003457  7003457  SR 35-342.3  Details

7000044  7000044  HW 4P

7000241  7000241  SR 35-343.4  Details

7000036  7000036  HW 2.0
