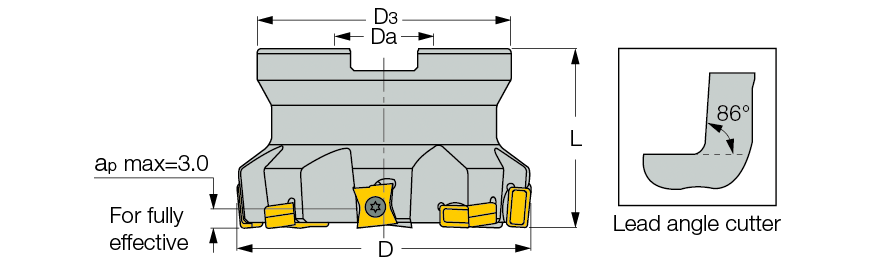

| Milling Family: F86LNX-11 86° Face Mills Carrying all 8 Cutting Edges of LN..1106... Tangentially Clamped Inserts Designation: F86LNX D080-10-27-R-N11 |
|
|
|
|
|
|
|
|
|
 |
| 80.00 |
10 |
50.00 |
27.00 |
B |
 |
7002495 |
SR 34-550 |
Details |
|
|
| |
 |
7002451 |
BLD T10/S7 |
|
|
|
| |
 |
7002244 |
SW6-SD |
|
|
|
| |
|
|
|
For ap>3.0 mm, zeff is half the number indicated in the table
LNAR 1106 inserts should not be used on these cutters
F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1106.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position
Feed should be limited to 0.25 mm/tooth.
