 Milling      Family: ECA-H3-CF Solid Carbide Endmills with Different Helix and Variable Pitch, 3, 4 and 5xD Neck Relief for Machining Aluminum       Designation: ECA-H3 25-38/125C25CF-R20
 Aluminum

Shouldering   Slotting   Ramp down   Helical interpolation

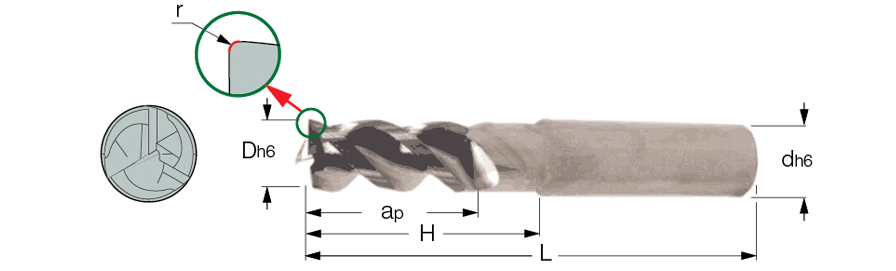

D ap H L d r Flute Rd° ShankC-Cylindrical fz(min) fz(max)
  25.00   38.00   125.00   185.00   25.00   2.00   3   5.0   C   0.05   0.15

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5622828 IC08   Not Available
3D Required
