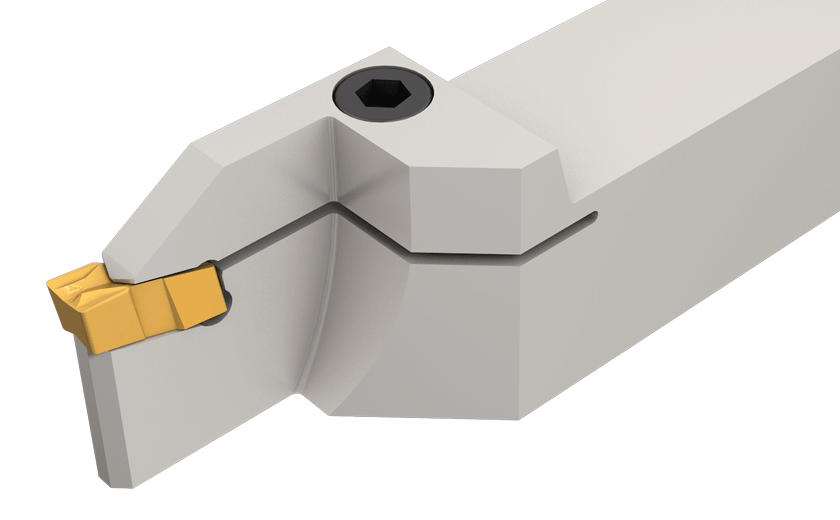

 Turn-Groove      Family: GHGR/L External Holders for Deep Grooving and Parting       Designation: GHGL 32-5
 Left-hand shown

Ext. Back turning   Ext. Grooving   Ext. Grooving & Turning   Parting   Ext. Profiling   Threading (Ext.)

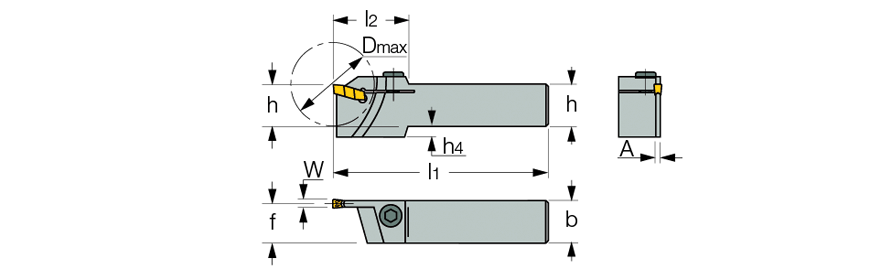

W min W max D maxMaximum parting diameter h b l1 l2 f A h4 R/L
  5.00   6.40   50.0   32.0   32.0   150.00   41.0   29.9   4.20   -   L

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800253 Not Available
3D Required		 Not Available
3D Required


7001841  7001841  SR M6X16DIN912 12.9  Details

7000045  7000045  HW 5.0


For machining depth over 13 mm, a single-ended insert is required (GIM, GIMF, GIMY). Tmax for grooving depth depends on part diameter D. For grooving a part with a diameter larger than Dmax, click on "More Info".
For using TIP inserts, toolholder seat needs to be modified according to insert profileto ensure clearance.
