 Milling      Family: MM HCD 2 Flute Interchangeable Solid Carbide Heads, for Chamfering, Countersinking and Spot Drilling       Designation: MM HCD124-090-2T08
 Economical solution

Countersinking   Slanted shoulder. & chamfer.   Drill mill

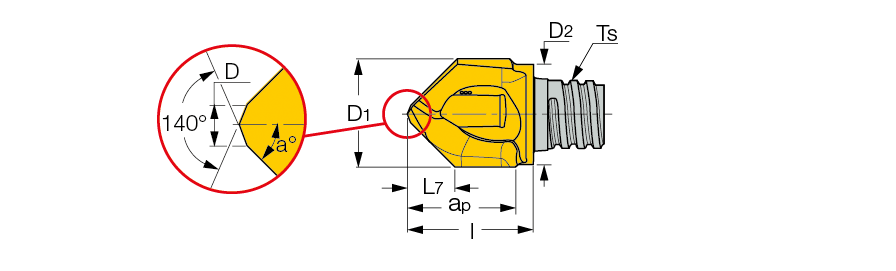

D DtolD diameter tolerance Z ap Ts D2 l a° L7 D4
  12.40   z9   2   11.80   T08   11.50   15.50   45   5.50   1.50

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5603545 IC908   Not Available
3D Required		 Not Available
3D Required
  May be used for F-type (fine) countersink according to DIN 74.


7002616  7002616  MM KEY 10X7
(Optional, should be ordered separately)


For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
