 Boring      Family: F45NM 45° Face Mills, Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges       Designation: F45NM D063-05-22-R08


Facing   Slanted shoulder. & chamfer.

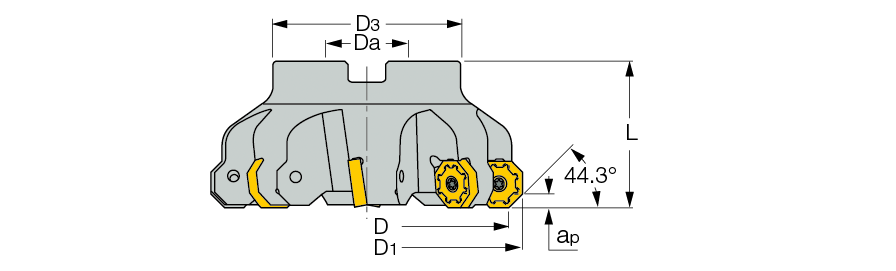

D D1 Z ap L Da ArborFor adaptation click on More Info Kg
  63.00   75.0   5   5.50   40.00   22.00   A   0.46

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3191574


7000229  7000229  SR 14-591/H  Details

7002090  7002090  BLD T20/S7

7002097  7002097  SW6-T

7000430  7000430  SR M10X25DIN912 12.9  Details


Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters
