 Milling      Family: SDN-CALN15 Full Slot Disk Type Slotting Cutters with Cartridges Carrying Tangentially Mounted LN.. 1506.. Inserts       Designation: SDN D160-1925-40-CALN15


Bottom Shouldering   Shouldering   Side slotting   Slotting

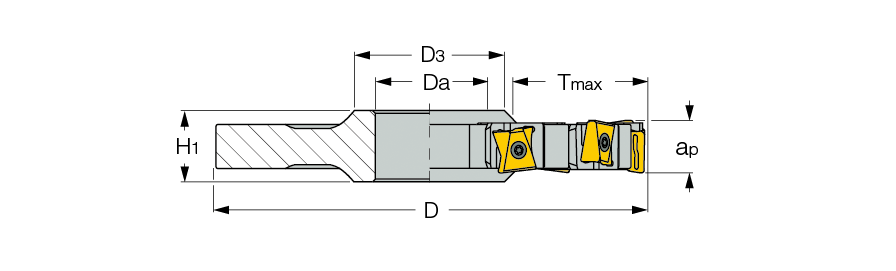

ap minThe cutter will be set to the minimum of the width range, unless a specific width will be requested by the user. ap max Tmax D Da Z Zeff D3 H1 Kg
  18.90   25.60   52.00   160.00   40.00   10   5   56.00   26.0   1.90

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3103765 Not Available
3D Required		 Not Available
3D Required


3103632  3103632  CA90 1928-R-LN15

3103633  3103633  CA90 1928-L-LN15


Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.
For adaptation click on "More Info".
