 Milling      Family: FDN-LN08 Full Slot Shell Mill Cutters with LNET 08... Tangentially Mounted Inserts       Designation: FDN D080-05-22-LN08


Side slotting   Slotting   Slitting

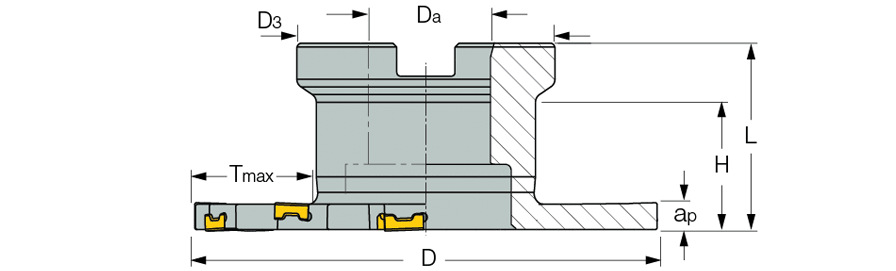

D ap min ap max Tmax Z Zeff H L D3 Da Arbor Kg
  80.00   5.00   5.50   22.50   10   5   28.00   40.00   45.00   22.00   A   0.33

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3106210 Not Available
3D Required


7003642  7003642  SR 114-018-L4.40  Details

7000428  7000428  T-6/5

7004473  7004473  T-6/3-L

7000430  7000430  SR M10X25DIN912 12.9  Details
