 Milling      Family: FDN Full Slot, Flange-Type Slotting Cutters       Designation: FDN D160-16-40-R10


   Bottom Shouldering   Facing   Shouldering   Side slotting   Slotting

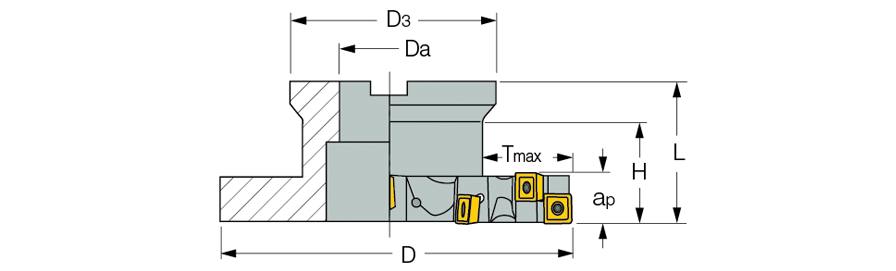

D ap Z Zeff Tmax Da D3 H L ArborFor adaptation, click on More Info. Kg
  160.00   16.00   16   8   46.50   40.00   80.00   43.50   60.00   B   2.13

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3100750 Not Available
3D Required


7000402  7000402  SR 14-544/S  Details

7000263  7000263  T-15/51


For fully effective conditions, click on "More Info".
