 Milling      Family: MM EC-CF Interchangeable Solid Carbide Endmill Heads for Chatter Free Roughing and Finishing Operations       Designation: MM EC250E22C6CF-4T15


Shouldering   Slotting   Ramp down   Helical interpolation

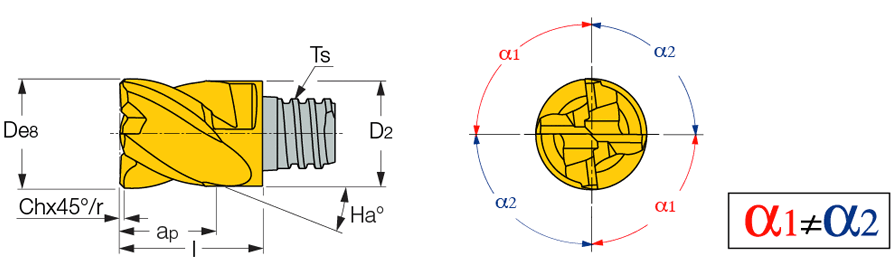

D Ch r Flute ap Ts D2 l Ha° fz(min) fz(max)
  25.00   0.6   -   4   22.00   T15   23.90   37.00   38.0   0.06   0.17

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5622615 IC908   Not Available
3D Required


4305309  4305309  MM KEY 20
(Optional, should be ordered separately)


For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
