 Milling      Family: SEKR-AF-N-42 Super Positive, Square Milling Insert for 45° Finishing and Medium Machining on Soft Materials       Designation: SEKR 1203AF-N-42


Facing   Plunging & recessing   Slanted shoulder. & chamfer.

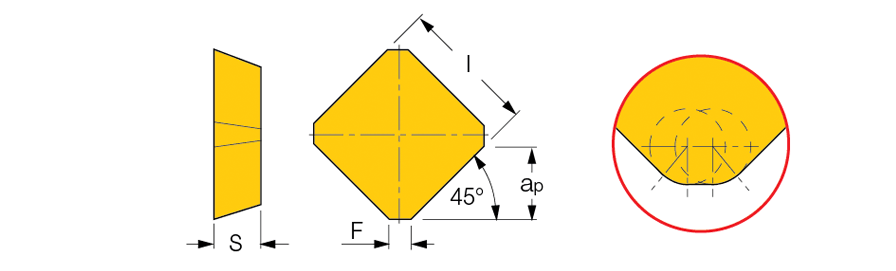

l S F ap fz(min) fz(max)
  12.70   3.18   1.80   6.50   0.10   0.15

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D)
  5601119 IC635 Alternative Not Available
3D Required

  5601120 IC520M Alternative Not Available
3D Required

  5601266 IC328 Alternative Not Available
3D Required

  5601269 IC28 Alternative Not Available
3D Required

  5601285 IC30N Alternative Not Available
3D Required
