 Milling      Family: EB-A-3 3 Flute, 30° Helix Short Solid Carbide Ball Nose Endmills       Designation: EB080A11-3C08


Profiling

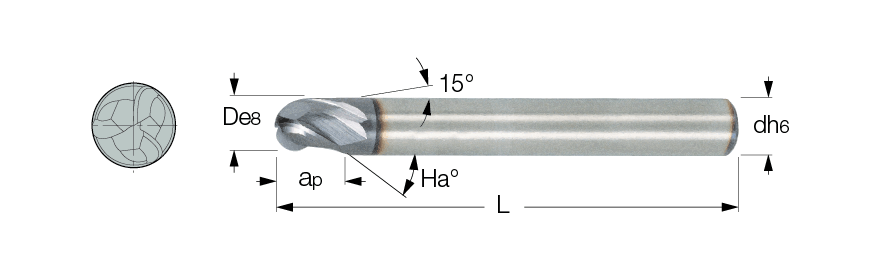

D d ap L Flute Ha° ShankC-Cylindrical
  8.00   8.00   11.00   63.00   3   30.0   C

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5620584 IC900 Alternative Not Available
3D Required

Short and stable design for profiling (roughing)
