 Milling      Family: ESB-A4 4 Flute, 30° Helix Spherical Long Solid Carbide Ball Nose Endmills, for Materials up to 65 HRc       Designation: ESB-A4 12 9/49C12M100
 Hard Materials

Profiling

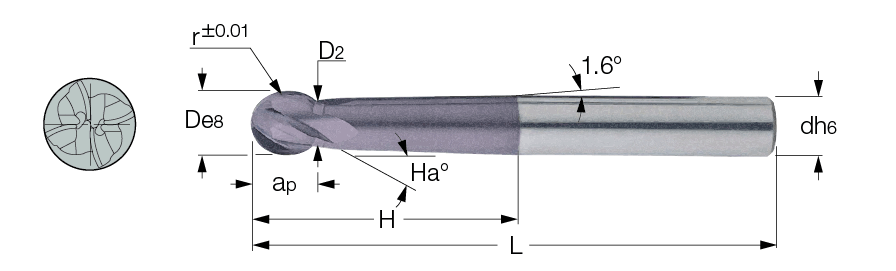

D r d ap H D2 L Flute Ha° ShankC-Cylindrical
  12.00   6.00   12.00   9.50   49.00   9.80   100.00   4   30.0   C

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  5650107 IC903   Not Available
3D Required
