 Milling      Family: ER Endmills with Round Inserts for Profiling and Milling of Round Corners       Designation: ER D15A25-2-C25-10


Profiling   Facing   Helical interpolation   Ramp down

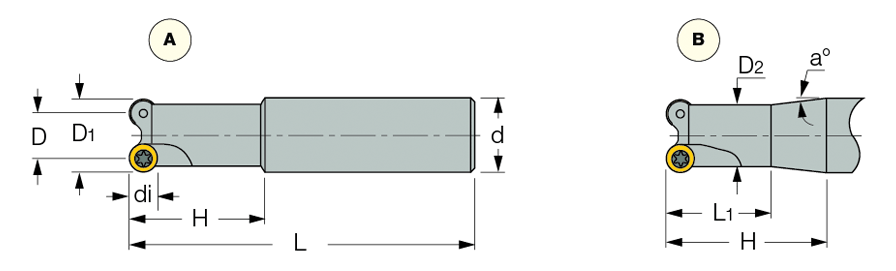

D1 D di D2 Z H d ShankC-Cylindrical Rd° a° L L1 Type Kg
  25.0   15.00   10.00   22.80   2   60.00   25.00   C   6.0   -   160.00   -   A   0.54

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  3101332 Not Available
3D Required		 Not Available
3D Required


7002353  7002353  SR 14-562/S  Details

7000293  7000293  T-10/51


For adaptation, click on "More Info".
