 Tooling Systems      Family: GHIR/L (W=1.9-6.4) Internal Grooving and Turning Bars       Designation: GHIL 32-6

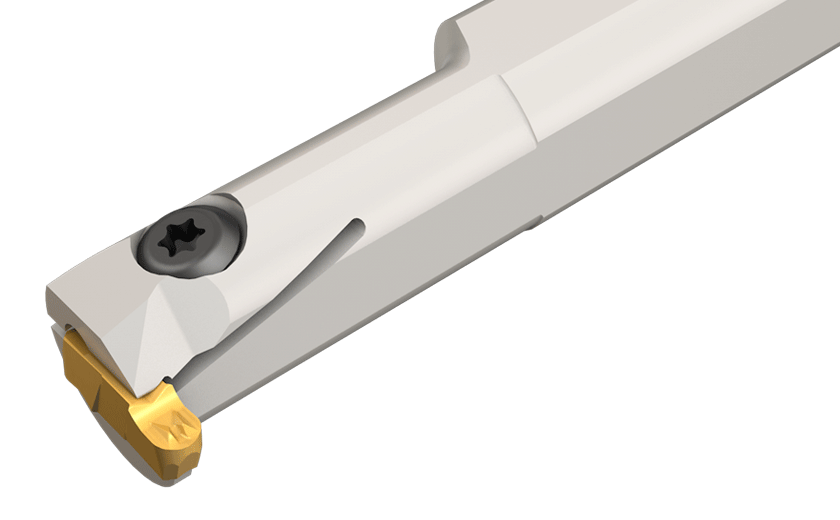

 Right-hand shown

Int. Grooving   Int. grooving (side limit)   Int. Groov & Turn   Int. Profiling   Threading (Int.)

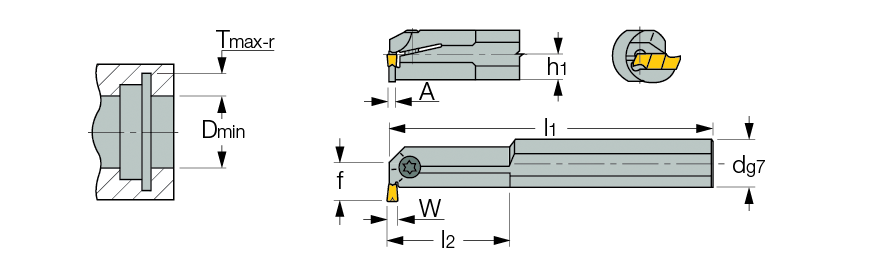

W min W max d D min Tmax-r l1 l2 f h1 A R/L
  4.00   6.40   32.00   39.00   6.50   250.00   -   22.8   14.5   3.60   L

  Catalog No Primary View
File (2D)		 Model (3D) Detail Model (3D) Light
  2800312


7000269  7000269  T-20/5

7000250  7000250  SR 76-1022  Details


For using TIPI insert, toolholder seat needs to be modified according to insert profile, to ensure clearance.
